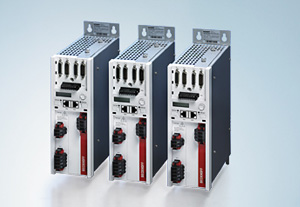

AX52xx

  • AX52xx圖片1
  • AX52xx圖片1
  • AX52xx圖片2
  • AX52xx圖片3
  • AX52xx圖片4
  • AX52xx圖片5

AX52xx

所在地：上海

有效期至：長期有效

最后更新：2017-02-07 15:27

瀏覽次數：2308

單價：面議
2308人瀏覽過該產品

產品詳細說明

The AX5000 Servo Drive series is available in single- or multi-channel form and is optimised in terms of function and cost-effectiveness. Integrated control technology supports fast and highly dynamic positioning tasks. EtherCAT as a high-performance communication system enables ideal interfacing with PC-based control technology.

The AX52xx 2-channel Servo Drive enables operation of two motors with identical or even with different capacity, up to a total current of 12 A. The multi-axis drives with variable motor output allocation offer optimised packaging density and costs per drive channel.
The AX5000 system enables simple and fast connection of several AX5000 devices to form a multi-axis system through the “AX-Bridge” quick connection system. The pluggable supply and connection module combines power supply, DC-link and 24 V DC control and braking voltage.
A wide range of motor types can be connected to the AX5000. Motors of different size and type can be connected without additional measures. Examples include synchronous, linear, torque and asynchronous motors. The multi-feedback interface supports all common standards.
The AX5000 was developed specifically for use with the EtherCAT real-time Ethernet system. The outstanding features of EtherCAT are particularly beneficial for Drive Technology. They include short cycle time, synchronicity and simultaneity. EtherCAT enables very short cycle times, even in networks containing a large number of devices.

Features
  • high-speed EtherCAT system communication
  • rated current (2-channel Servo Drive): 2 x 1.5 A, 2 x 3 A, 2 x 6 A
  • wide voltage range: 1 x 100 -10 %…3 x 480 V AC +10 %
  • active DC-link and brake energy management
  • multi-feedback interface
  • flexible motor type selection
  • scalable, wide range motor current measurement
  • high-speed capture inputs
  • diagnostic and parameter display
  • integrated mains filter Cat. C3, according to EN 61800-3
  • optional safety functions: restart lock, intelligent TwinSAFE safety functions
  • compact design for simple control cabinet installation
  • AX-Bridge – the quick connection system for power supply, DC-link and control voltage
  • variable cooling concept
Technical data AX5201 AX5203 AX5206
Rated output current at 50 °C 2 x 1.5 A 2 x 3 A 2 x 6 A (*)
Minimum rated channel current at full current resolution 0.35 A 1 A 1 A
Max. rated channel current at full current resolution (1-phase connection) 3 A 4.5 A 9 A
Max. rated channel current at full current resolution (3-phase connection) 3 A 6 A 9 A
Rated supply voltage 3 x 100 V AC -10 %…3 x 480 V AC +10 %
1 x 100 V AC -10 %…1 x 240 V AC +10 %
DC-link voltage max. 890 V DC
Peak output current (1) 2 x 5 A 2 x 10 A 2 x 13 A
Peak output current as total device current (1) 10 A 20 A 26 A
Rated apparent power
for S1 operation (selection)
120 V (1-/3-phase connection)
230 V (1-/3-phase connection)
400 V (only 3-phase connection)
480 V (only 3-phase connection)

0.6 kVA
1.2 kVA
2.1 kVA
2.5 kVA

1.2 kVA
2.4 kVA
4.2 kVA
5.0 kVA

2.5 kVA
4.8 kVA
8.3 kVA
10.0 kVA
Continuous braking power (2) 50 W 150 W 90 W
Max. braking power (2) 14 kW
Power loss (3) 55 W 85 W 160 W
System bus EtherCAT
Weight 5.0 kg 6.0 kg 6.0 kg
(1)RMS for max. 7 seconds, (2)internal brake resistor, (3)S1 operation, incl. power supply, without brake chopper
(*)For 1-phase mains the total current is limited to 9 A.
Dimensions AX5201 AX5203 AX5206
Height without connectors 274 mm
Width 92 mm
Depth without connectors 232 mm
Ordering information AX520x-0000
AX5201-0000 Digital Compact Servo Drive, 2-axis module, 100…480 V AC, rated output current 2 x 1.5 A, EtherCAT interface
AX5203-0000 Digital Compact Servo Drive, 2-axis module, 100…480 V AC, rated output current 2 x 3 A, EtherCAT interface
AX5206-0000 Digital Compact Servo Drive, 2-axis module, 100…480 V AC, rated output current 2 x 6 A, EtherCAT interface
